P8 Outdoor Frontal Opening Led Display
Products Visitors:494



 P8 outdoor frontal opening led display



P8 Outdoor LED Module

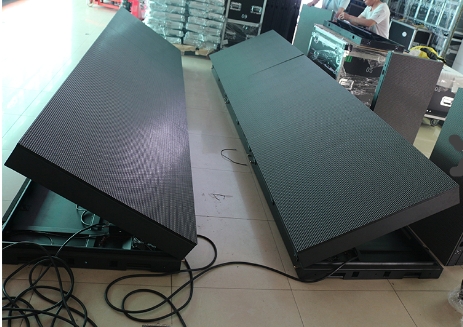

P8 Outdoor Frontal Opening LED Cabinet & Screen






P8 Outdoor Frontal Opening Led Display Specification



Pixel Pitch

8mm

LED Configuration

SMD 3-in-1

Pixel Density

15625 pixels/sq.m

Module Size

256mm*128mm

Module Resilution

32pixel*16pixel

Cabinet Size

1280mm*768mm (could be customized)

Cabinet Resolution

160pixels*96pixels

Cabinet Material

Iron/Aluminum

Cabinet weight

50kg/sqm or 40kg/sqm

Brightness

6500cd/sqm

Colour temperature

3500K-9500K(adjustable)

Viewing Angle

H:140°/V:140°

Brightness Uniformity

≥97%

Brightness Adjustment

Manual/Auto/Programmable

Ave. Power consumption

450 W/sqm

Max. Power consumption

800W/sqm

Input Voltage

AC220V/50HZ or  AC110V/60HZ (±10%)

Output Voltage

5V,40A

Best Viewing Distance

8m~200m

Contrast ratio

5000:1

Frame rate

50/60 Hz/sec

Refresh rate

≥1200Hz

Grey scale levels

R(256bit) x G(256bit) x B(256bit)

Display Colors

R(1024) x G(1024) x B(1024)

Protection Level

IP65

Life-span

100,000 hours

MTBF

10,000 hours

Malfunction dot rate

< 0.0001

Storage Temp/Humidity

-30~+60℃/10~90%RH

Operating Temp/Humidity

-20~+50℃/10~90%RH

Drive Mode

1/4 scan

Control System

Synchronousfor LINSN,Novastar/Asynchronous/Wifi/3G Wireless for choice

Input Signal

RF,TV,RGB,S-VIDEO,PAL,DVI,HDMI,VGA,SDI,AVI,RGBHV,CVBS,etc

PC Operating System

Microsoft Windows 7, 8, 98, 2000, XP and Vista



P8 Outdoor Frontal Opening Led Display Features:

1. High resolution 15625pixels/sqm, HD nice video advertising effect.
2. SMD 3-in-1 LED encapsulation confirm the wide viewing angle, good uniformity and flatness of screen.
3. Good protection level waterproof IP65, anti-corrosion, oxidation resistance, long life span.
4. Brightness can be adjusted automatically according to different surroundings.
5. Could be set to open and close the screen automatically.
6. Could be mounted on the wall, by pole support on the street, on top of building, etc.
7. Support all types of video, graphics, animation, message, etc, support PC online or offline control, also could be remote controlled with asynchronous system, or Wifi control, 3G control.
8. Front maintenance. Could be used in places where rear maintenance could not be adopted.
