P4 Indoor Led Display
Products Visitors:406



 P4 indoor led display


LED Module

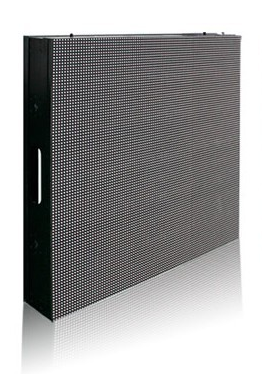

 LED Cabinet



LED Screen







P4 Indoor led display specification




Unit module

Module size

128*128mm

Pixel pitch

4mm

Pixel density

62500dots/m2

Pixel configuration

1R1G1B

Led specification

SMD2121

Pixel resolution

W:32dots*H:32dots

Cabinet

Dimension

640x640mm/768x768mm/896x896mm/1024x1024mm are avaliable

Power supply

4pcs

Thermal discharge

Fan*2pcs

Total weight

45kg/m2

Best viewing angle

16-300m

Temperature

Storage: -35°C~+85°C

Working: -35°C~+85°C

Thickness

10cm can adjustable

Remarks: cabinet size can changed, upon project need.

Power

Working voltage

AC220V/110V±10%

Average power consumption

580-610W

Max. Power consumption

800W/sqm

Current

≤20mA(single LED)

Control system

CPU

Pentium4 or above

Operating system

WIN98/2000/NT/XP

Control method

Synchronization

Main technical parameter

Driving device

1/16 scan

Drive type

Constant Current driver IC

Refresh frequency

480Hz

Grey scale/colors

256 levels of each color(R/G/B)/16.7M color

Brightness of white balance

More than 2500 cd/sqm

Brightness adjustment

256 levels of each color(R/G/B)by software

Operating ambient humidity

10%--95%

Video signal

PAL/NTSC

Control system

DVI display card+full color controller card

MTBF

≥10,000hours

Life span

≥100,000hours

Flatness

Tolerance of interpixel ≤0.3mm

Tolerance of modules clearance≤0.6mm

Power switch

Automatic switch

Display mode

640*640

Control card

Linsn or Novar star

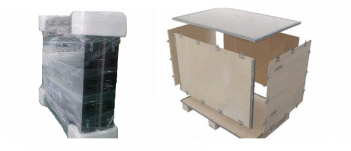

P4 indoor led display packaging






Why choose our P4 indoor led display?



1) Quality advantage: Each performance index of our products has achieved advanced level of the industry.



2) Price Advantage: The price of our led display products is most reasonable in the market. Maximize the value of customer's investment. Special discount and protection of sales area provided to our distributor.



3) Performance Advantage: Best equality, high consistency, high refresh rate, big viewing angle, easy repair.



4) Service advantage: Excellent service before and after sale.
